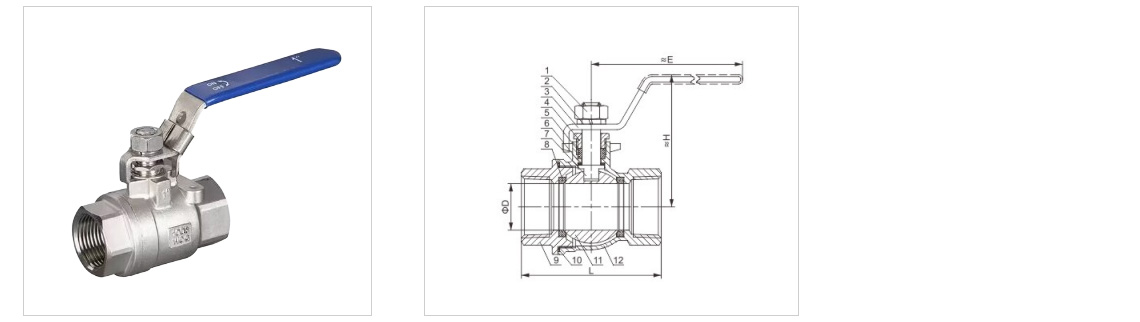

2Pc Threaded Ball Valve
Perfomance Sepcifications
| Working Pressure : 1000PSI | ||
| Temperature Range : -20~232°C | ||
| Suitable Medium : Water, oil, air and some | ||
| Corrosive liquid | ||
Parts of Material
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | SSC13 |
| 2 | End cap | SSC13 |
| 3 | Ball | SS304 |
| 4 | Stem | SS304 |
| 5 | Seat | PTFE |
| 6 | Gasket | PTFE |
| 7 | Thrust Washer | PTFE |
| 8 | Stem o-ring | VITON |
| 9 | Packing | PTFE |
| 10 | Gland | SSC13 |
| 11 | Bolt | SS304 |
| 12 | Nut | SS304 |
Demension
| Size | D | L | E |
|---|---|---|---|
| 15A | 15 | 54.5 | 50 |
| 20A | 20 | 64.5 | 54 |
| 25A | 25 | 75 | 66 |
| 32A | 32 | 77.5 | 66 |
| 40A | 38 | 88 | 80 |
| 50A | 49 | 99.5 | 86 |

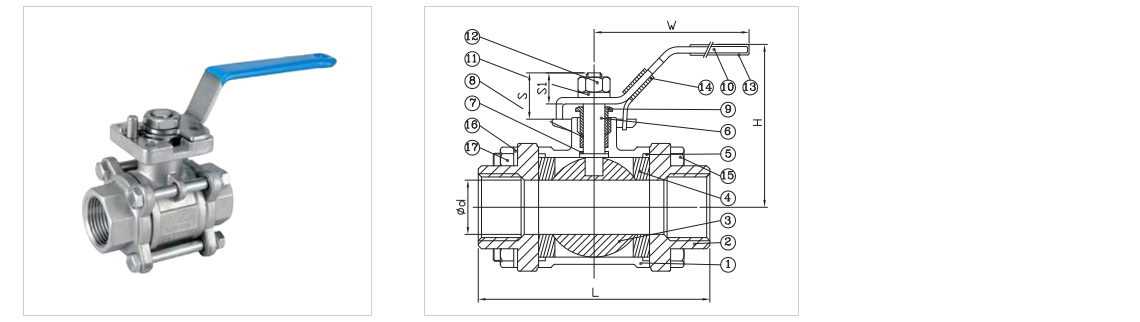

3Pc Threaded Ball Valve
Perfomance Sepcifications
| Working Pressure : 1000PSI | ||
| Temperature Range : -20~232°C | ||
| Suitable Medium : Water, oil, air and some | ||
| Corrosive liquid |
Parts of Material
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | 304 |
| 2 | Cap | 304 |
| 3 | Ball | 304 |
| 4 | Ball seat | PTFE |
| 5 | Joint Gasket | PTFE |
| 6 | Stem | 304 |
| 7 | Thrust Washer | PTFE |
| 8 | Stem Packing | PTFE |
| 9 | Gland Nut | 304 |
| 10 | Handle | 201 |
| 11 | Stem washer | 304 |
| 12 | Stem Nut | 304 |
| 13 | Handle Sleeve | PVC |
| 14 | Locking Device | 201 |
| 15 | Bolt | 304 |
| 16 | Spring Washer | 304 |
| 17 | Hex Nut | 304 |
Demension
| Size | D | L | H | W |
|---|---|---|---|---|
| 15A | 15 | 63 | 60 | 95 |
| 20A | 20 | 73 | 64 | 115 |
| 25A | 25 | 82 | 71 | 135 |
| 32A | 32 | 94 | 78 | 150 |
| 40A | 38 | 104 | 86 | 160 |
| 50A | 49 | 123 | 95 | 180 |
