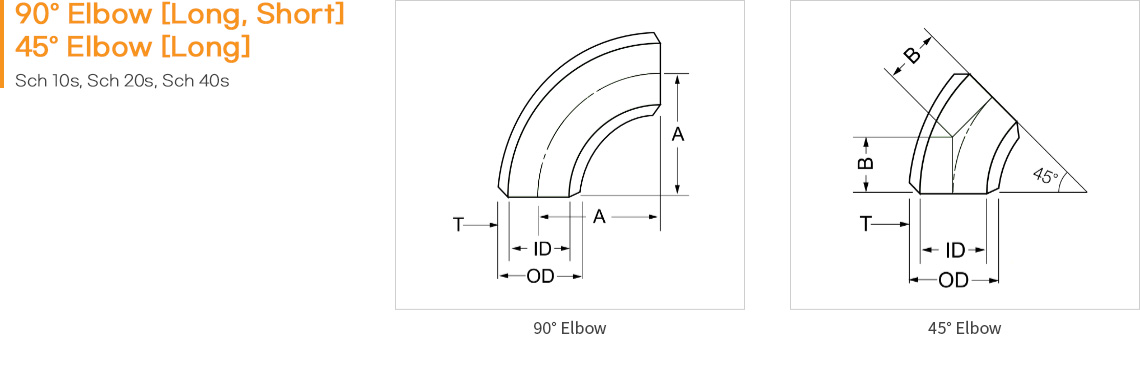

규격
Unit : mm
| Nominal Pipe Size |
Outside Diameter (OD) |
Sch 10s | Sch 20s | Sch 40s | Long | Short | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| ID | T | ID | T | ID | T | A(90˚) | B(45˚) | A(90˚) | ||
| 15A | 21.7 | 17.5 | 2.1 | 16.7 | 2.5 | 16.1 | 2.8 | 38.1 | 15.8 | - |
| 20A | 27.2 | 23 | 2.1 | 22.2 | 2.5 | 21.4 | 2.9 | 38.1 | 15.8 | - |
| 25A | 34 | 28.4 | 2.8 | 28 | 3 | 27.2 | 3.4 | 38.1 | 15.8 | 25.4 |
| 32A | 42.7 | 37.1 | 2.8 | 36.7 | 3 | 35.5 | 3.6 | 47.6 | 19.7 | 31.8 |
| 40A | 48.6 | 43 | 2.8 | 42.6 | 3 | 41.2 | 3.7 | 57.2 | 23.7 | 38.1 |
| 50A | 60.5 | 54.9 | 2.8 | 53.5 | 3.5 | 52.7 | 3.9 | 76.2 | 31.6 | 50.8 |
| 65A | 76.3 | 70.3 | 3 | 69.3 | 3.5 | 65.9 | 5.2 | 95.3 | 39.5 | 63.5 |
| 80A | 89.1 | 83.1 | 3 | 81.1 | 4 | 78.1 | 5.5 | 114.3 | 47.3 | 76.2 |
| 100A | 114.3 | 108.3 | 3 | 106.3 | 4 | 102.3 | 6 | 152.4 | 63.1 | 101.6 |
| 125A | 139.8 | 133 | 3.4 | 129.8 | 5 | 126.6 | 6.6 | 190.5 | 78.9 | 127 |
| 150A | 165.2 | 158.4 | 3.4 | 155.2 | 5 | 151 | 7.1 | 228.6 | 94.7 | 152.4 |
| 200A | 216.3 | 208.3 | 4 | 203.3 | 6.5 | 199.9 | 8.2 | 304.8 | 126.3 | 203.2 |
| 250A | 267.4 | 259.4 | 4 | 254.4 | 6.5 | 248.8 | 9.3 | 381 | 157.8 | 254 |
| 300A | 318.5 | 309.5 | 4.5 | 305.5 | 6.5 | 297.9 | 10.3 | 457.2 | 189.4 | 304.8 |
| 350A | 355.6 | 346 | 4.8 | 339.8 | 7.9 | 333.4 | 11.1 | 533.4 | 220.9 | 355.6 |
| 400A | 406.4 | 396.8 | 4.8 | 390.6 | 7.9 | 381 | 12.7 | 609.6 | 252.5 | 406.4 |
