제품소개

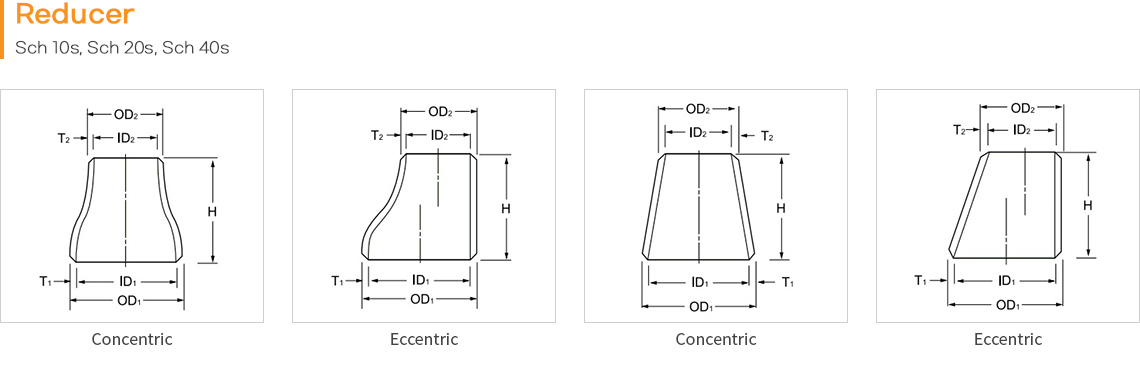

rect 규격

Unit : mm

Nominal
Pipe Size		 Outside Diameter Wall Thickness T End to
End H
OD1 OD2 Sch 10s Sch 20s Sch 40s
T1 T2 T1 T2 T1 T2
25 × 20
25 × 15		 34.0
34.0		 27.2
21.7		 2.8
2.8		 2.1
2.1		 3.0
3.0		 2.5
2.5		 3.4
3.4		 2.9
2.8		 50.8
50.8
32 × 25
32 × 20		 42.7
42.7		 34.0
27.2		 2.8
2.8		 2.8
2.1		 3.0
3.0		 3.0
2.5		 3.6
3.6		 3.4
2.8		 50.8
50.8
40 × 32
40 × 25
40 × 20		 48.6
48.6
48.6		 42.7
34.0
27.2		 2.8
2.8
2.8		 2.8
2.8
2.1		 3.0
3.0
3.0		 3.0
3.0
2.5		 3.7
3.7
3.7		 3.6
3.4
2.9		 63.5
63.5
63.5
50 × 40
50 × 32
50 × 25		 60.5
60.5
60.5		 48.6
42.7
34.0		 2.8
2.8
2.8		 2.8
2.8
2.8		 3.5
3.5
3.5		 3.0
3.0
3.0		 3.9
3.9
3.9		 3.7
3.6
3.4		 76.2
76.2
76.2
65 × 50
65 × 40
65 × 32		 76.3
76.3
76.3		 60.5
48.6
42.7		 3.0
3.0
3.0		 2.8
2.8
2.8		 3.5
3.5
3.5		 3.5
3.0
3.0		 5.2
5.2
5.2		 3.9
3.7
3.6		 88.9
88.9
88.9
80 × 65
80 × 50
80 × 40		 89.1
89.1
89.1		 76.3
60.5
48.6		 3.0
3.0
3.0		 3.0
2.8
2.8		 4.0
4.0
4.0		 3.5
3.5
3.0		 5.5
5.5
5.5		 5.2
3.9
3.7		 88.9
88.9
88.9
90 × 80
90 × 65
90 × 50		 101.6
101.6
101.6		 89.1
76.3
60.5		 3.0
3.0
3.0		 3.0
3.0
2.8		 4.0
4.0
4.0		 4.0
3.5
3.5		 5.7
5.7
5.7		 5.5
5.2
3.9		 101.6
101.6
101.6
100 × 90
100 × 80
100 × 65
100 × 50		 114.3
114.3
114.3
114.3		 101.6
89.1
76.3
60.5		 3.0
3.0
3.0
3.0		 3.0
3.0
3.0
2.8		 4.0
4.0
4.0
4.0		 4.0
4.0
3.5
3.5		 6.0
6.0
6.0
6.0		 5.7
5.5
5.2
3.9		 101.6
101.6
101.6
101.6
125 × 100
125 × 90
125 × 80
125 × 65		 139.8
139.8
139.8
139.8		 114.3
101.6
89.1
76.3		 3.4
3.4
3.4
3.4		 3.0
3.0
3.0
3.0		 5.0
5.0
5.0
5.0		 4.0
4.0
4.0
3.5		 6.6
6.6
6.6
6.6		 6.0
5.7
5.5
5.2		 127.0
127.0
127.0
127.0
150 × 125
150 × 100
150 × 90
150 × 80		 165.2
165.2
165.2
165.2		 139.8
114.3
101.6
89.1		 3.4
3.4
3.4
3.4		 3.4
3.0
3.0
3.0		 5.0
5.0
5.0
5.0		 5.0
4.0
4.0
4.0		 7.1
7.1
7.1
7.1		 6.6
6.0
5.7
5.5		 139.7
139.7
139.7
139.7
200 × 150
200 × 125
200 × 100		 216.3
216.3
216.3		 165.2
139.8
114.3		 4.0
4.0
4.0		 3.4
3.4
3.0		 6.5
6.5
6.5		 5.0
5.0
4.0		 8.2
8.2
8.2		 7.1
6.6
6.0		 152.4
152.4
152.4
250 × 200
250 × 150
250 × 125
250 × 100		 267.4
267.4
267.4
267.4		 216.3
165.2
139.8
114.3		 4.0
4.0
4.0
4.0		 4.0
3.4
3.4
3.0		 6.5
6.5
6.5
6.5		 6.5
5.0
5.0
4.0		 9.3
9.3
9.3
9.3		 8.2
7.1
6.6
6.0		 177.8
177.8
177.8
177.8
300 × 250
300 × 200
300 × 150
300 × 125		 318.5
318.5
318.5
318.5		 267.4
216.3
165.2
139.8		 4.5
4.5
4.5
4.5		 4.0
4.0
3.4
3.4		 6.5
6.5
6.5
6.5		 6.5
6.5
5.0
5.0		 10.3
10.3
10.3
10.3		 9.3
8.2
7.1
6.6		 203.2
203.2
203.2
203.2
